Crystallization Plates, Hardware & Accessories

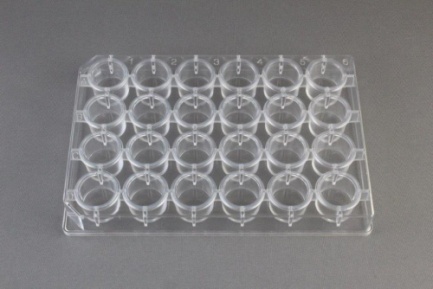

24 Well Crystallization Plates
For Sitting Drop





Cryschem M - Microplate footprint with round reagent reservoir
Cryschem S - Microplate footprint with square reagent reservoir (compatible with Formulatrix Formulator)
Cryschem Plate - Larger footprint and round reagent reservoir



應用

Sitting drop crystallization

Heavy atom soaks

Seeding



特點

Optically clear, concave sitting drop post

Smooth, flat top for easy seal

Each plate supplied with a cover

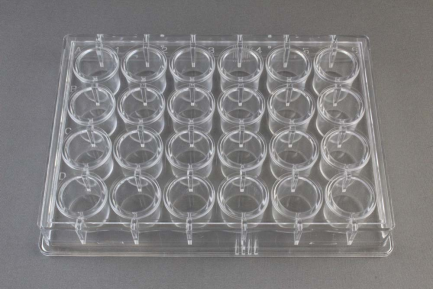

24 Well Crystallization Plates
For Hanging Drop





 VDX Plate without sealant
 VDX Plate with sealant- Ready to seal with cover slides



應用

 Hanging drop crystallization

 Sitting drop crystallization with Micro-Bridges®

 Dialysis crystallization with Dialysis Buttons™



特點

 24 well plate with raised cover

 Compatible with 22 mm diameter square and circle cover slides

 Optically clear plastic

Extremely versatile and cost-effective crystallization platform

Compatible with UV crystal imaging when used with HR3-231 and HR3-233 - 22 mm x 0.22 mm Siliconized circle cover slides and HR3-215 and HR3-217 - 22 mm x 0.22 mm Siliconized square cover slides







VDXm Plate with sealant - Ready to seal with cover slides

VDXm Plate without sealant



應用

Hanging drop crystallization



特點

24 well plate with raised cover

Compatible with 18 mm diameter circle cover slides

Optically clear plastic

128 mm x 85 mm microplate footprint

Compatible with UV crystal imaging when used with HR3-239 and HR3-241 - 18 mm x 0.22 mm Siliconized circle cover slides

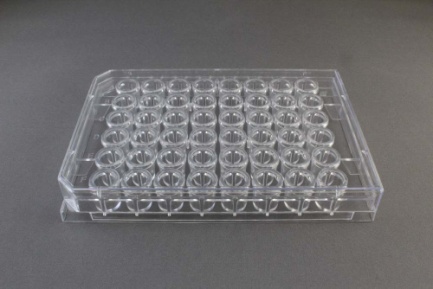

48 Well Crystallization Plates
For Hanging Drop





 VDX48 Plate with sealant



應用

 Hanging drop crystallization



特點

 48 well plate with raised cover

 Sealant applied to 48 wells, ready to seal with cover slides

 Compatible with 12 mm diameter circle cover slides

Optically clear plastic

128 mm x 85 mm microplate footprint

Compatible with UV crystal imaging when used with HR3-277 or HR3-279 - 12 mm x 0.22 mm Siliconized circle cover slides



Cover Slides & Related Tools

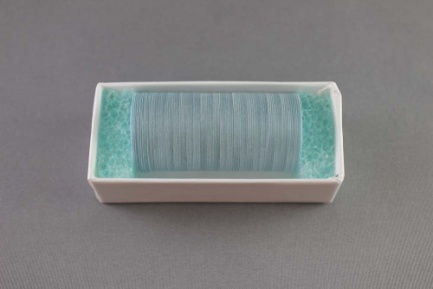

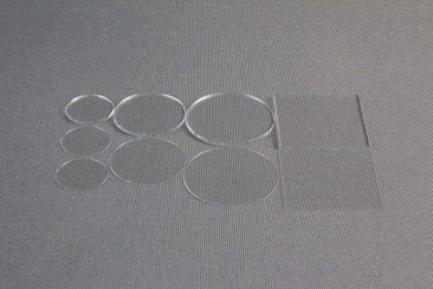

 Siliconized Glass Cover Slides



應用

 Hanging drop crystallization

 Sitting drop crystallization

 Sandwich drop crystallization



特點

 High purity of glass

 Siliconized, hydrophobic glass surface

 0.22 mm & 0.96 mm glass thickness

 Glass diameter: 12 mm, 18 mm, 22 mm

 Circle

0.22 mm glass thickness is UV Compatible (>85% transmission)







OptiClear Plastic Cover Slides



應用

 Hanging, sitting and sandwich drop crystallization



特點

 18 mm circle, 22 mm circle, or 22 mm square

 RNase-free; handle with forceps to prevent contamination

 Compatible with most crystallization reagents

 Hydrophobic - Siliconization is not required

 0.25 mm thickness Polycarbonate

應用領域

蛋白分析與純化-蛋白質結晶
